| WEIGHT (±%3) |
7200 kg |
| AXLES |
Axle group with 3x9000 load capacity,
equipped with drum or disc brakes |
| CHASSIS |
High-strength S700MC steel material, I-beam
cross-section, SERİN chassis manufactured in compliance with standard
regulations |
| BRAKES |
Dual-circuit brake system equipped with
automatic load-sensing valve and RSS (Roll Stability Support) in accordance
with UN ECE R13 regulations |
| AXLE LIFT |
Front axle lifting system preventing tire
wear and enhancing maneuverability during turns |
| LANDING GEAR |
Dual-speed mechanical landing gear with a
static/technical load capacity of 24 TONS |
| KING PIN |
2'' Flanged type King Pin complying with UN
ECE R55 standards |

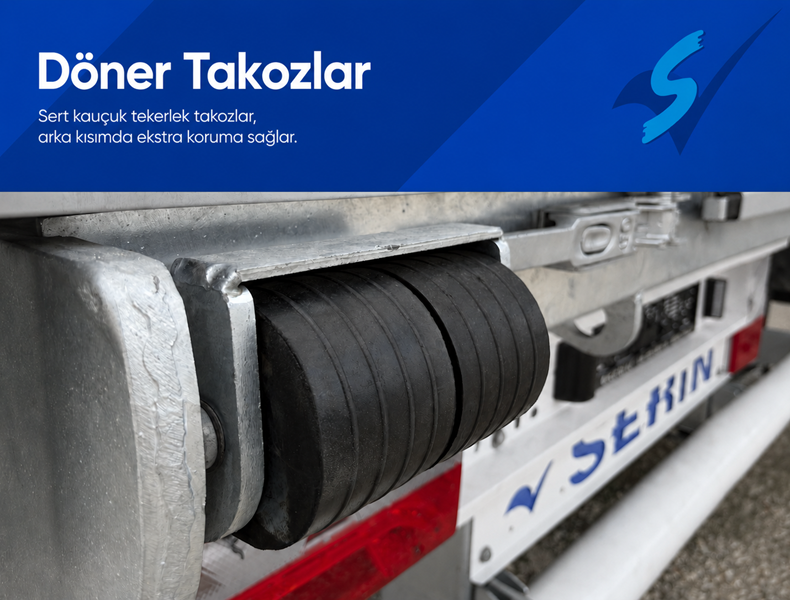

| REAR BUMPER |
Hot-dip galvanized (wear and
corrosion-resistant) rear underrun protection device (bumper), manufactured
and tested according to UN ECE R58 standards |
| AIR
SUSPENSION |
Height-adjustable air suspension system with
lowering and lifting functions. Equipped with parabolic Z-springs and shock
absorbers limiting excessive axle travel |
| ELECTRICAL
SYSTEM |
LED lighting system suitable for all prime
movers, equipped with 2x7-pin and 1x15-pin sockets in compliance with UN ECE
R48 and ADR regulations |

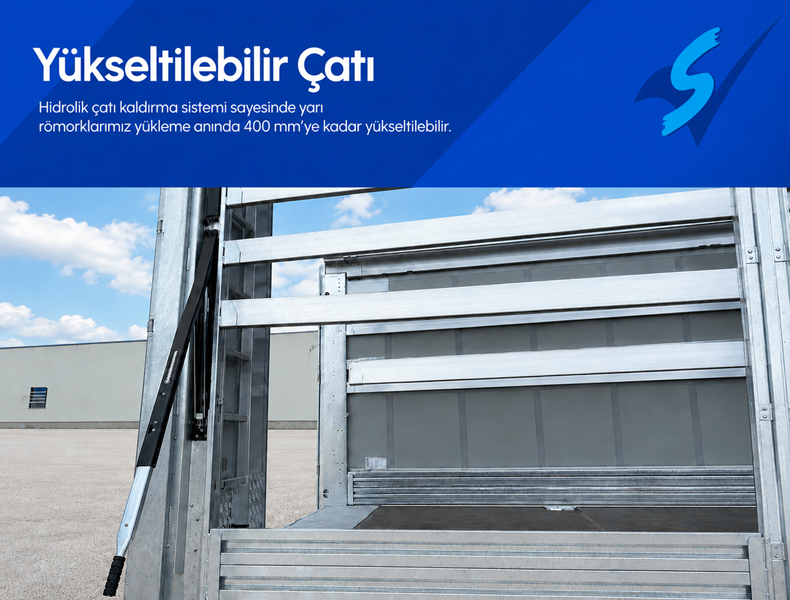

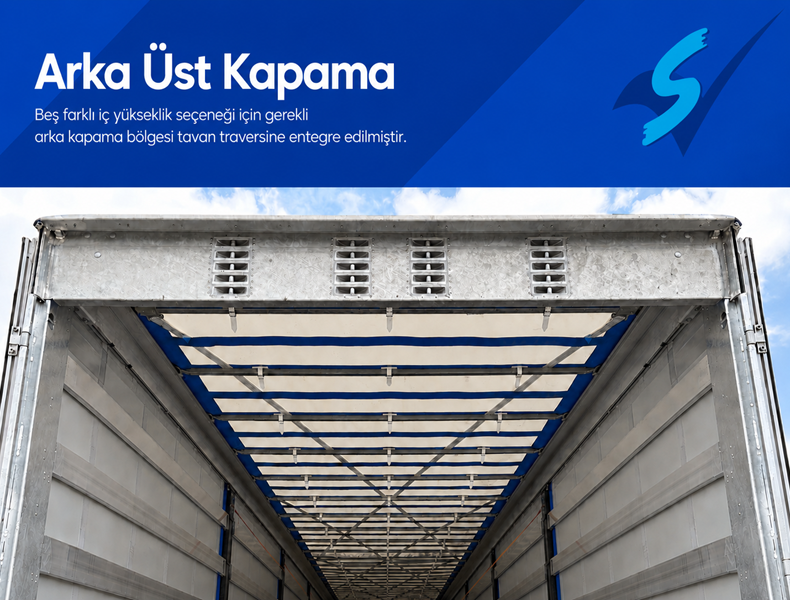

| ROOF SYSTEM |
Roof system with aluminum tracks, consisting
of 21 non-customs parallel slats (roof bows). For customs-approved (TIR
carnet) vehicles, it consists of 22 slats |

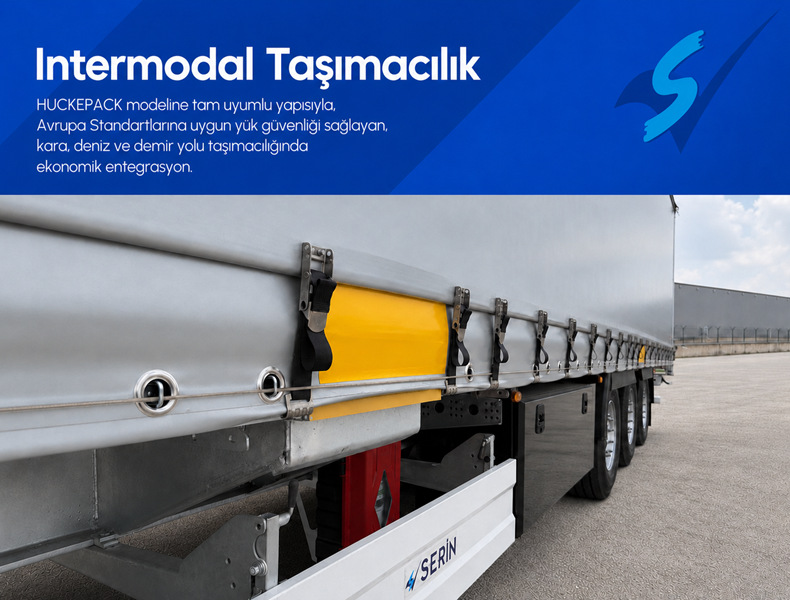

| TARPAULIN
SYSTEM |
Tarpaulin manufactured with 12x12 weave
density, $900\text{ g/m}^2$ weight, $4000\text{ N/cm}$ tensile strength, and
$600\text{ N}$ tear resistance |
| SIDE BOARDS |
4 units of aluminum side boards on each side |

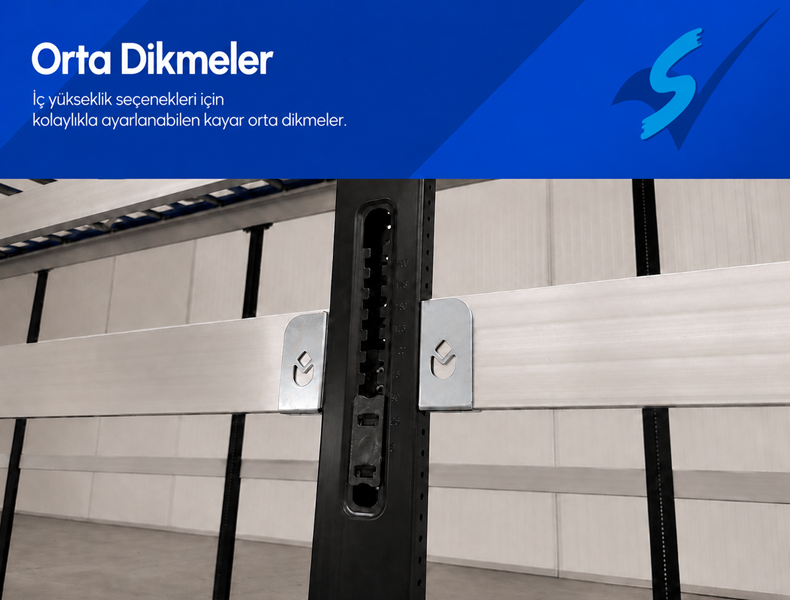

| SUPERSTRUCTURE |
5 rows of aluminum slats above the side
boards on each side |

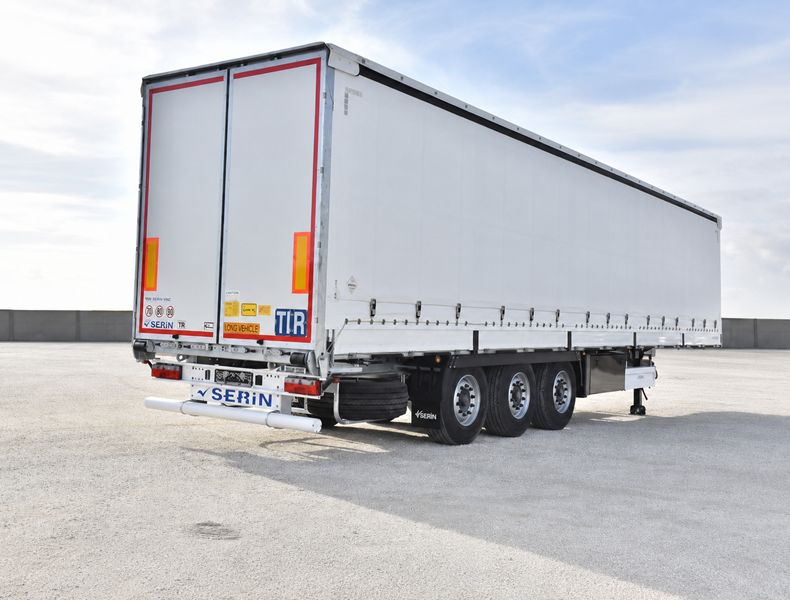

| REAR DOOR |
2-Wing container-type rear door with
integrated/hidden locking mechanism |
| TOOLBOX |
2 units of steel kitchen/food storage boxes,
dimensions 1500x600x500 mm |
| SIDE GUARD |
Impact-resistant aluminum side underrun
protection (bicycle guards) complying with UN ECE R73 standards |
| WATER TANK |
60-liter steel water tank |

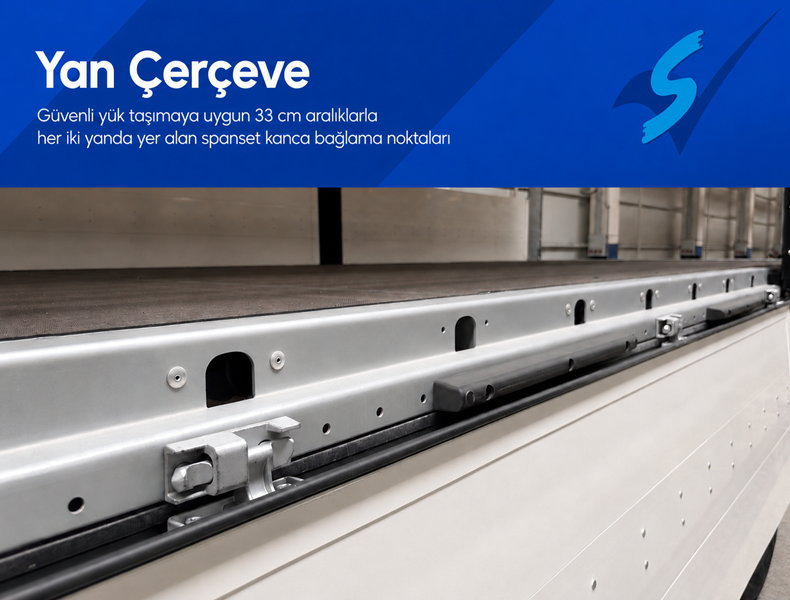

| STRAP HOOK
ANCHORAGE POINTS |
Secure cargo-lashing strap (ratchet) hook
apertures integrated into the side coamings at 33 cm intervals, engineered to
ensure structure sealing |
| TIRES AND
RIMS |
6 + 1 units of 385/65 R 22.5 Tubeless Tires
mounted on Steel Rims |

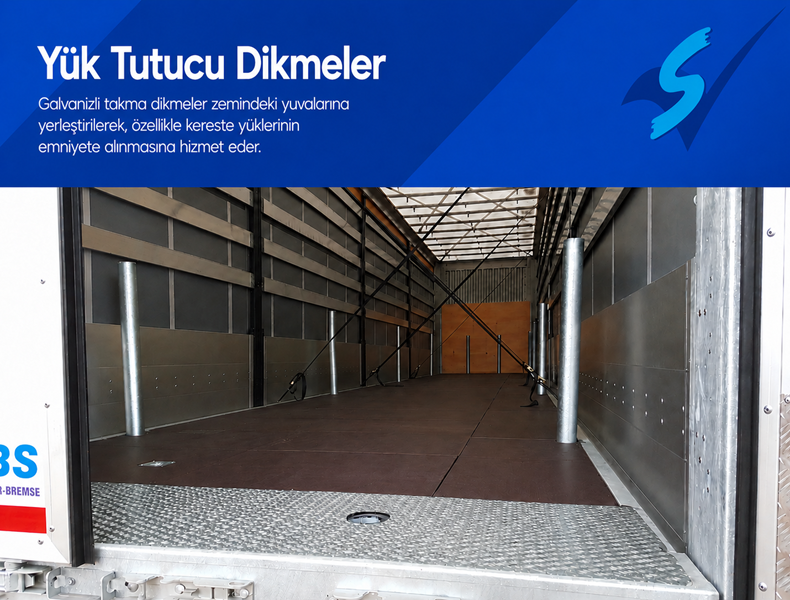

| FLOORING |
30 mm thick, slip-resistant plywood flooring
coated with phenolic resin, complying with EN 283 norm (highly resistant to
7.2-ton forklift axle load) |
| SPARE TYRE
CARRIER |
Basket-type spare tire carrier |
| MUDGUARD |
Anti-spray plastic quarter mudguards |
