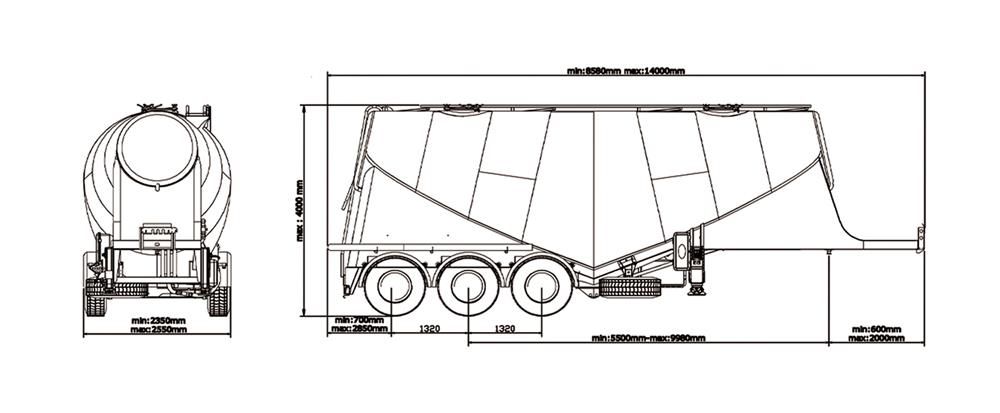

| LENGTH
& TRUCK TRACTOR TYPE |
11300mm suitable for 6 x 4 Truck
Tractor |
| WIDTH |
2550 mm |
| HEIGHT
OF THE SYLLABUS |
4000 mm |
| CHASSIS |
The chassis of the syllabus
semi-trailer is integrated with connection pads welded of the body of the
tank shell. |
| KING
PIN |
2” king – pin detachable from
below made by , SAE standards 8 bolt type. |
| LOADING
CAPACITY |
30m3 |
| TANK
CONSTRUCTION |
Tank is “V” shape. Tank is built
by carbon steel ST37 with thickness of 4 mm |
| MANHOLE
COVERS |
3 units, 450 mm diameter heavy
duty screw type loading covers (top loading cover) |
| DİSCHARGING
VALVES |
1 unit leaf valve, 1 unit ball
valve for speeding the discharging and 4 “ discharging system |
| HOSES
AND CONNECTIONS |
6 mt special alloy discharge
hose and 2 unit regulated to 2.5 bar safety valve and inside the tank
including 110 mm diameter with air conduit imported hose. Upper catwalk and
Access ladder is set to trailer |
| SAFETY
ACCESSORIES |

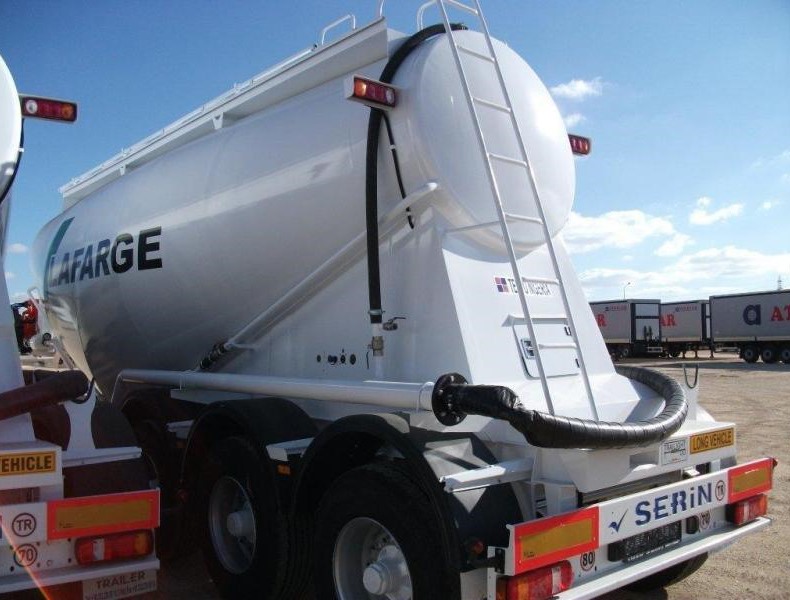

Upper catwalk and Access ladder
is set to trailer |
| BRAKE
& SUSPENSION SYSTEM |
Air Suspension, Drum Brake
System, Knorr Brake System |
| LANDING
GEAR |
Double Speed, 24000 kg carrying
capacity, Jost brand mechanical Landing Gears, |
| REAR
BUMPER |
Suitable 70/221 / AT-version of
the rear bumper, |
| CHOCKS
AND PROTECTIVE BARRIERS |
Carriers with 1 unit wheel chock |
| TIRES
AND RIMS |
6 +1 PCS 385 / 65 R 22,5 Pirelli
or Bridgestone |
| SPARE
WHEEL CARRIER |
1 piece tire carrier |
| BOXES |
1 unit Tool Box, 1 units of 6 kg
of fire tube and plastic carriers |
| WATER
TANK |
60 lit water tank which is made
of stainless steel. |
| PAINT |
Material cleaned and grit
(metal) material is blasting, 2 Floor Epoxy primers are made and the desired
color, In the final layer is painted with 2 coats acrylic paint, |
| ELECTRICAL
SYSTEM |
There are amber-colored lights
in the side by 3 units, Park at the rear lamps, License plate lamp, Reflector
triangles, Flame proof electrical system, 2 X 7-pin electrical socket. |
| ACCESSORIES |
Hub key, Axles Bolt Nut key,
Tool box keys, |
| TYPE OF

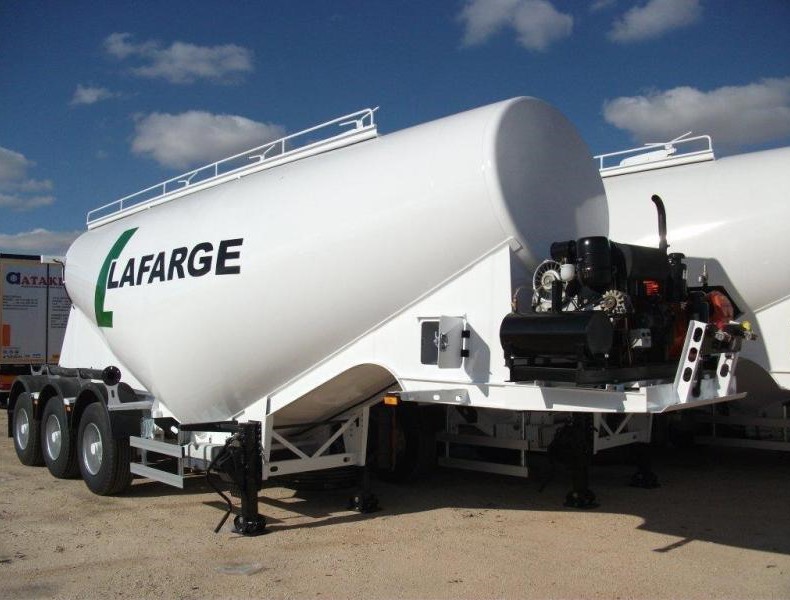

THE COMPRESSOR |
Disel Compressor |
